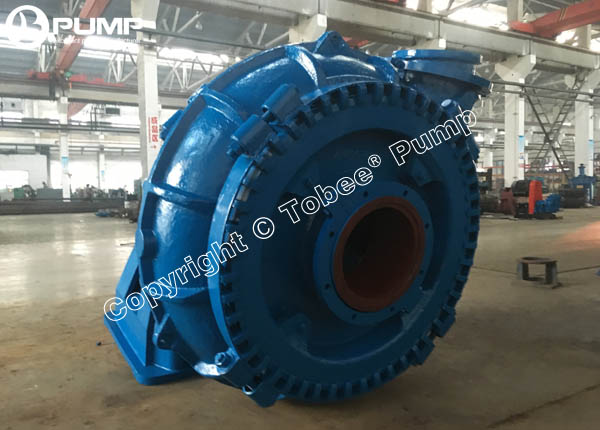

14x12 Engine Sand Pump


    SPECIFICATIONS:

    Size: 14" x 12"
    Capacity: 576-3024m3/h
    Head: 8-70m
    Speed: 300-700rpm
    NPSHr: 2-8m
    Eff.: 68%
    Power: Max.600kw
    Handling solids: 241mm
    Seal arrangement: Packing seal, Expeller seal, Mechanical seal
    Materials: High chrome alloy, Cast iron, Cast steel, Stainless steel etc


Inquire Now
  • Product Description

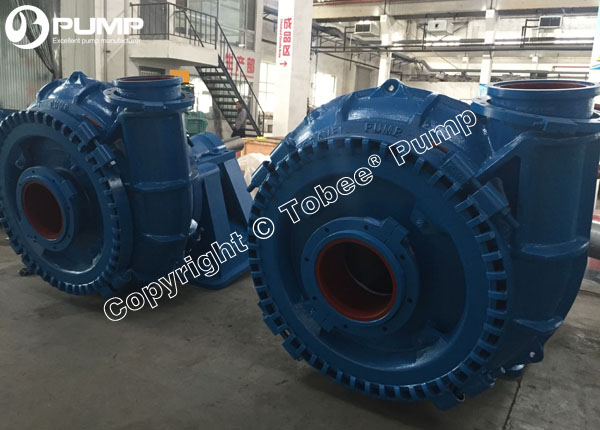

Tobee® TG14x12G Diesel Engine Sand Pump is single-stage single-casing horizontal dredging pump driven by diesel engine through a gearbox, The materials of wear parts are made from high chrome alloy with hardness is no less than 60HRC, adopting grease lubrication for bearings to ensure stable running on the strong frame, It is widely used in the river platform, barges, marine ship or dredger for pumping sands, gravels, slurries, muds, sludges, stones or other big particle solids etc.


Design Features:

• Bearing assembly - Large diameter shaft with short overhang contributes to long bearing life.
• Liners - Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
• Casing - Casing halves of cast or ductile iron provide high operating pressure capabilities.
• Impeller - Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
• Throatbush - Wear is reduced and maintenance simplified by the use of tapered.


Tobee® TG14x12G Diesel Engine Sand Pump Performance Parameter:


Model

Max.Power P

(kw)

Capacity Q

(m³/h)

Head H

(m)

Speed n

(r/min)

Eff. η

(% )

NPSH

(m)

Impeller Dia.

(mm)

TG14/12G600576-30248-70300-700682-8864
TG14/12T
1200576-30248-70300-700682-8864


Tobee® TG14x12G Diesel Engine Sand Pump Components Design:


Tobee 14x12 Diesel Engine Sand Pump Structural Drawing


Tobee® TG14x12G Diesel Engine Sand Pump Drive Module Design:


Tobee TG14x12G Diesel Engine Sand Pump Drive Module Design


Tobee® TG14x12G Diesel Engine Sand Pump Frame Explanation:


Frame typeABCDERFGST
Max.Power (kw)7.51530601203002606005601200
Frame Weight (kg)17244577.515422855510065461156
Amount of Shaft Sealing Water (l/s)0.150.250.350.550.700.700.701.201.201.60


Tobee® TG14x12G Diesel Engine Sand Pump On-site Applications:


Tobee TG14x12G Diesel Engine Sand Pump On-site Applications

• Dredging• Mining• Suction Hopper Dredging• Barge Loading
Sand Reclamation• Dredger• Mill Discharge• Tunnel boring machine
• Pipe-jacking system• Ash handing
• Metal melting• Coarse sand
• Blast slag• Sugar Beet• Cyclone Feed• Waste sludge
• Slag Granulation• Power Plant• Construction• Other industries


Tobee® TG14x12G Diesel Engine Sand Pump Dimensional Drawing:


Tobee TG14x12G Diesel Engine Sand Pump Dimensional Drawing
